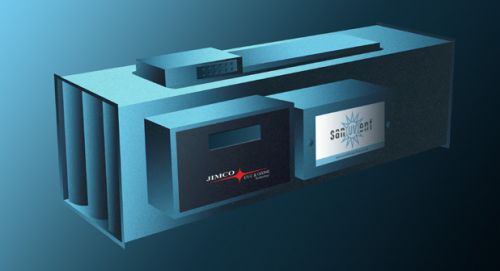

Sanuvent

Sanuvent™ is a cost effective way of significantly improving air quality and reduce airborne pathogens up to 99.99% (Log 3) within a building. It has been proven to reduce days lost to Sick Building Syndrome by improving the surrounding environment by eradication Bacteria and Virus from the air.

Our system does not only protect the people who work within the spaces but also protects the AHU equipment and ductwork from harbouring bacteria and viruses.

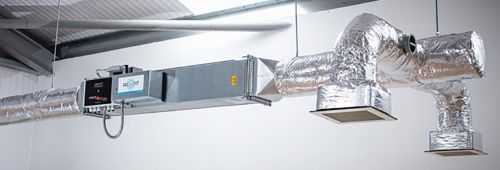

Our Sanuvent™ units, following a survey or design information provision, can be easily fitted within the ductwork, causing minimal disruption to the working building. All that is required is a single phase supply for each unit (depending on size). The simple installation will then allow the AHU to operate at full efficiency as per the original design specification.

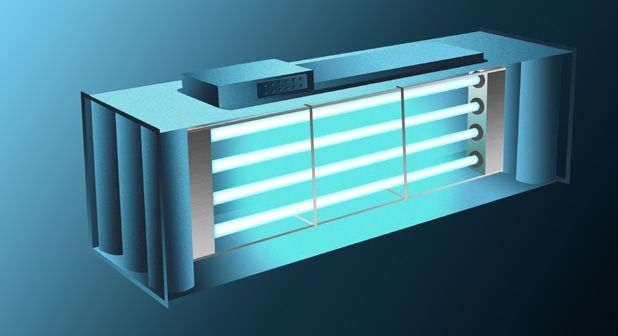

UVC Light, is a known disinfectant for killing bacteria. Our company has used UVC for 20 years to effectively reduce bacterial counts in water systems and in the air. Our UVC is also used to stop the spread of bacteria across surfaces, and is used by the NHS for this purpose.

The system is supplied and fitted with 2no. safety switches to prevent activation of unnecessary operation when air handling units are off and accidental exposure to the powerful UVC lamps during maintenance.

Sanuvent™ uses the required amount of UVC to achieve 5.4mj/cm to a log 3 pathogen reduction.

The Benefits

The following benefits in Covid times and beyond can be the winning result in getting businesses back to some sort of normality.

• Protects staff and customers.
• Cost effective but calculated solution based upon airflow volumes, dwell time, lamp requirements and air speed are needed.
• Simple power supply required to the controls box, the rest is factory wired, assembled and manufactured.
• Easily installed once a small site survey or design details are submitted.
• Peace of mind to cover, protect and disinfect against any cross contamination in the AHU mixing, thermal wheel or plate to plate recovery sections.
• Low running costs compared to the additional energy and running cost of the AHUs, heating and cooling plant.
• Minimal maintenance - annual service with 8000 hour lamp change.
• Running the AHU system to its normal capacity therefore keeping the working life as designed.
• Log 3 deactivation and treatment of all supply air into the occupied spaces.
• Cleaner environment which can help with a reduction in Sick Building Syndrome.
• Potential insurance premium reductions in years to come.
